RX/TXD ENCODER RECEIVER-TRANSMITTER

$306.00

FEATURES:

  • Various voltages available
  • Encoder tester/verifier
  • Enclosed housing
  • DIN rail mount
Build your own

Description

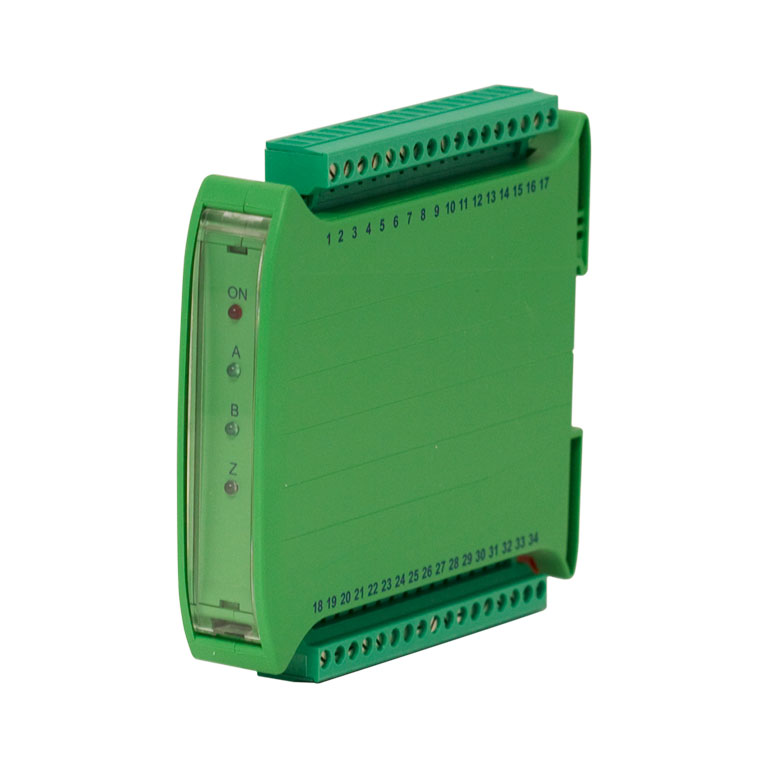

This lightweight DIN rail mountable unit, Line Driver and Line Receiver, comes in a stylish green PC/ABS self-extinguishing material blend. It is configurable as a level changer, line repeater, splitter or encoder tester. The RX/TXD will accept TTL, RS422, RS485, PP, NPN, NPN OC, or PNP encoder inputs at 5V, or HTL, PP, NPN, NPN OC & PNP at 5V-24V. It will provide up to 3 outputs in any combination of TTL, RS422, RS485, PP, NPN or PNP, at 5V, or, HTL, PP, NPN or PNP at 6-28V. A series of LEDs on the front panel indicates power and signal presence. Connections are made via the easily accessible screw terminals as standard. This device may be used as both a Line Driver and Line Receiver.
