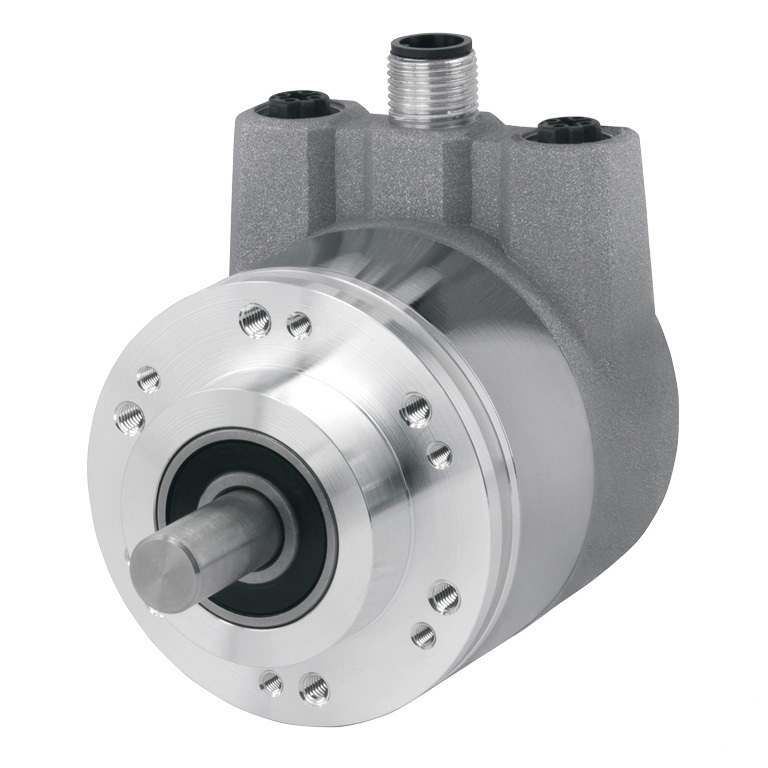

Model A58SE

$1,011.00

FEATURES:

    • Single/multi-turn absolute encoder (16 Bit ST / 43 Bit MT)
    • 58 mm (2.28”) diameter package
    • Energy-harvesting magnetic multi-turn technology, no gears or batteries
    • Shaft loads up to 400 N
    • Available in three industrial Ethernet protocols:
      • EtherCAT® with CoE, FoE, EoE – device profile: CiA DS-406 V4.0.2, Class 3
      • EtherNet/IP™ position sensor, DLR
      • PROFINET® I-O (CC-C) – device profile: switchable V4.1, Class 3, 4
Build your own
Categories: ,

Description

The Model A58HE is an EtherCAT®, EtherNet/IP™, or PROFINET®-ready, multi-turn absolute encoder designed for heavy duty industrial applications. It is particularly suited to applications that require Ethernet-based connectivity, and where the encoder must retain position information after power-off events. Easily designed into a wide variety of system applications, the A58SE plugs directly into your network with minimal provisioning for rapid deployment, facilitating data exchange among myriad networked devices. The Model A58SE retains absolute position information even after a power loss, facilitating speedy system recovery at start-up without the need for system re-homing.

Click here to view complete product specifications on www.encoder.com.

Additional information

Weight 7.5 oz
Dimensions 4 × 6 × 3 in
